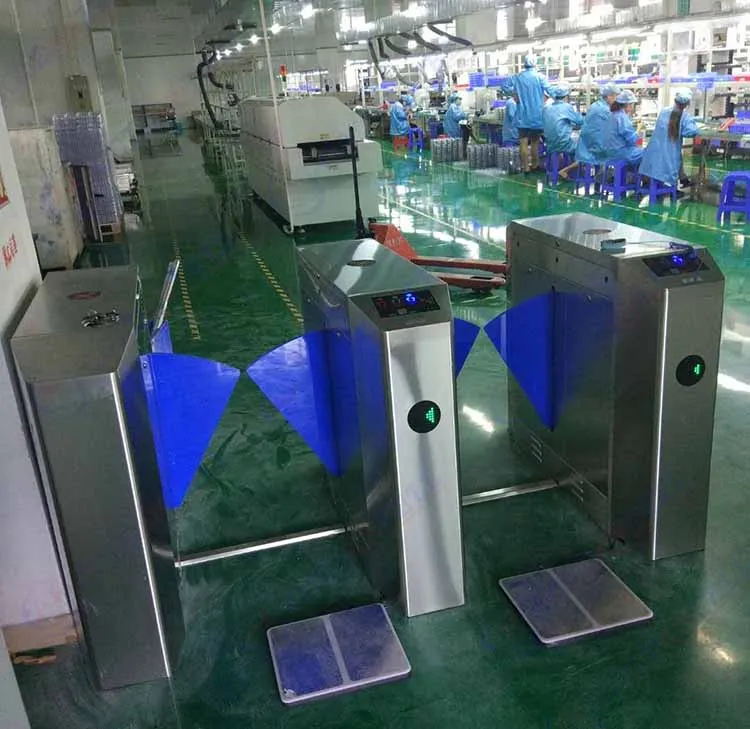

Manufacturing Shop Security Access Control Bi-Directional Turnstile Coin Operated esd Swing Gate Turnstile For Gym
—————————————————————————————
Application Of Bi-Directional Turnstile
1. The complete stainless steel construction is suited for interior or exterior application.
2. The access gates also have double core engine, apply for both sides access which can apply to multi-channel.
3. Our pedestrian barrier Gates can provide a level of security to meet any challenging requirements, including anti-pinch, time attendance, or passing management, etc.
4. With 485 interface for long-distrance control concern.
5. IP54, suitable for both outdoor and indoor.
6. Smoothly running with little noise.
Specifications Of Bi-Directional Turnstile
| 1 | Cabinet dimension | 1200 (L) x 280 (W) x 1000 (H) mm |
| 2 | Cabinet material | 304 stainless steel (316 ss can be custom-made) |
| 3 | Switching power supply | AC220±10%V 50Hz or AC110±10%V 60Hz |
| 4 | opening/closing time | 0.2s |
| 5 | Arm material | thickness 10mm Acrylic, or tempered glass or steel (custom) |
| 6 | Access mode | single in/out or Bidirectional |
| 7 | Passthrough Width | 900mm (or custom) |
| 8 | Mechanism | DC Brushed motor+Clutch (or Servo motor) |
| 9 | Communication interface | RS485, TCP/IP |
| 10 | Infrared sensor | 6~10 pairs |
| 11 | Optimal flow rate | 40 persons/min (open), 35 persons/min (closed) |
| 12 | Reset time after break down | default 10s can be changed to fit different demands |
| 13 | MCBF | 5,000,000 Cycles |
| 14 | Working humidity | 30%~95% |
Functions Of Bi-Directional Turnstile
1. Infrared reset function (Optional:4 pairs or 6 pairs Infrared). Infrared induction clamp function.
2. The turnstile is bidirectional (pedestrian can enter and exit from one pair of turnstiles).
3. Real time trouble self-detect and alarm indication, ensuring system safe operation and facilitating maintenance and operation
4. To select a reasonable normally open or close mode, to divert the flow of passengers effectively.
5. Setting function humanized for reset of over time passing.
6. Can manager and long-range control the turnstile directly by managing the computer.
7. Flashing light prompt function: it is convenient to find the turnstile problem by administrative staff.
